Custom API Keys (Using Downstream Service Tokens)

Custom API Keys Overview

Instead of managing separate uag_ API keys, you can now use your existing downstream service tokens (like LiteLLM's default sk- or Antropic's sk-ant-apitokens) directly as gateway authentication tokens. This eliminates the need for dual authentication and simplifies your Claude Code configuration.

Problem This Solves

Previously, you needed:

LiteLLM API key (sk-STk......) for the downstream service
Gateway API key (uag_xxx...) for the gateway authentication
HTTP proxy to inject the gateway API key header

Now you can use just one key - your existing service token!

Custom API Keys How It Works

When creating an API key in the gateway, you can choose to:

Option 1: Generate new key (default)

Gateway generates a uag_ prefixed key
You use this key in the X-API-Key header

Option 2: Use existing service token (new!)

You provide your existing service token (e.g., sk-STk......)
Gateway stores a hash of this token
You continue using your existing ANTHROPIC_AUTH_TOKEN
Gateway validates the token from the Authorization: Bearer header

Creating a Custom API Key

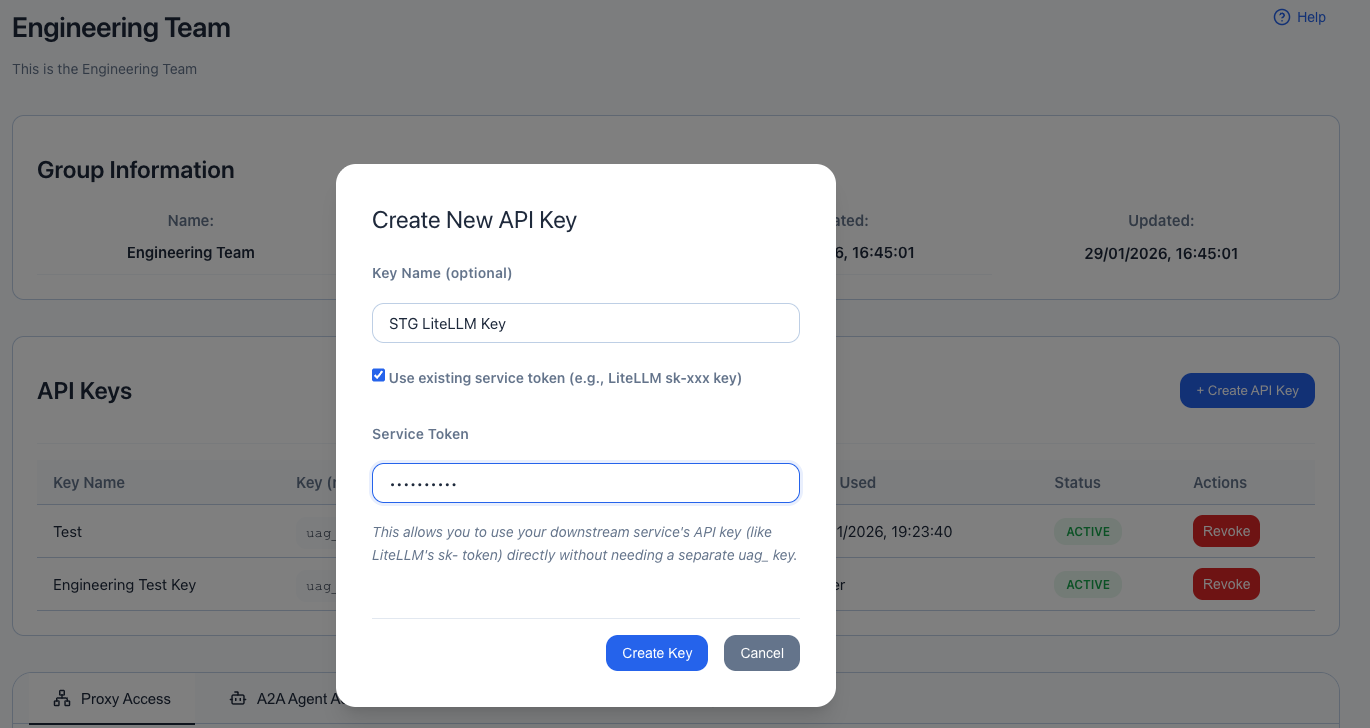

Custom Keys Via Web UI

Go to User Groups → View your group
Click + Create API Key
Enter a name (e.g., "Claude Code Token")
Check the box: ☑ "Use existing service token (e.g., LiteLLM sk-xxx key)"
Enter your service token: sk-STk......
Click Create Key

Custom API

The gateway will:

Hash and store your service token securely
Return the token back to you (for confirmation)
Allow authentication using Authorization: Bearer sk-xxx...

Custom Keys Via API

bash

curl -X POST http://localhost:8080/api/v1/api-keys \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer <your-admin-token>" \
  -d '{
    "name": "Claude Code Token",
    "user_group_id": 1,
    "description": "LiteLLM token for Claude Code",
    "custom_key": "sk-STk......"
  }'

Response:

json

{
  "success": true,
  "data": {
    "api_key": {
      "id": 2,
      "name": "Claude Code Token",
      "key_prefix": "sk-STkVM",
      "user_group_id": 1,
      "active": true,
      "created_at": "2025-10-23T12:00:00Z"
    },
    "key": "sk-STk......",
    "message": "API key created successfully. Save this key securely - it will not be shown again!"
  }
}

Claude Code Configuration

Before (With Proxy)

bash

# Needed separate proxy
export ANTHROPIC_BASE_URL=http://localhost:8034/  # Proxy on 8034
export ANTHROPIC_AUTH_TOKEN="sk-STk......"

After (Direct)

bash

# Direct to gateway - no proxy needed!
export ANTHROPIC_BASE_URL=http://localhost:8033/  # Gateway on 8033
export ANTHROPIC_AUTH_TOKEN="sk-STk......"

That's it! No extra proxy needed.

How Authentication Works

Header Extraction Priority

The gateway checks headers in this order:

X-API-Key header (checked first)
```
X-API-Key: uag_abc123...
```
Authorization: Bearer header (checked second)
```
Authorization: Bearer sk-STk......
```
Authorization: ApiKey header (checked third)
```
Authorization: ApiKey uag_abc123...
```

Only ONE token is extracted - whichever is found first.

Standard Gateway Key (uag_)

Client Request:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
X-API-Key: uag_abc123def456...
Authorization: Bearer sk-litellm-token  ← For downstream service
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Gateway Processing:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. Extract: X-API-Key found → "uag_abc123def456..."
2. Hash: sha256("uag_abc123def456...") → "hash_xyz..."
3. Lookup: api_keys WHERE key_hash = "hash_xyz..."
4. Validate: Active? User group active? Has proxy access?
5. Forward to LiteLLM with both headers preserved:
   - X-API-Key: uag_abc123def456...
   - Authorization: Bearer sk-litellm-token
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Custom Service Token (sk-) - NEW!

Client Request (Claude Code):
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Authorization: Bearer sk-STk......
Content-Type: application/json
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Gateway Processing:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. Extract: X-API-Key not found
2. Extract: Authorization Bearer found → "sk-STk......"
3. Hash: sha256("sk-STk......") → "hash_abc..."
4. Lookup: api_keys WHERE key_hash = "hash_abc..."
5. Found! API Key registered as "Claude Code Token"
6. Validate: Active? User group active? Has proxy access?
7. Forward to LiteLLM with SAME Authorization header:
   - Authorization: Bearer sk-STk......
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

LiteLLM receives:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Authorization: Bearer sk-STk......  ← Same token!
Content-Type: application/json
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Magic: The same token (sk-STk......) is used for:

Gateway authentication - Validates against database (hash lookup)
LiteLLM authentication - Forwarded unchanged to service

No dual tokens, no extra proxy, no header injection needed!

Custom API Keys Security

Custom Key Token Storage

Never stored in plain text
SHA-256 hash stored in database
Same security as standard uag_ keys
Cannot be retrieved after creation (only hash is stored)

Token Validation

Extract token from Authorization: Bearer <token>
Hash the token with SHA-256
Look up hash in api_keys table
Validate:
- Key is active
- Key hasn't expired
- User group is active
- User group has proxy access
Allow or deny request

Token Display

Prefix shown: sk-STkVM (first 8 characters)
Full token: Only shown once at creation
Masked in UI: sk-STkVM••••••••

Custom API Keys Use Cases

1. Claude Code with LiteLLM

bash

# 1. Create API key with your LiteLLM token via UI
# 2. Configure Claude Code
export ANTHROPIC_BASE_URL=http://localhost:8033/
export ANTHROPIC_AUTH_TOKEN="sk-STk......"
export ANTHROPIC_MODEL="custom--us.anthropic.claude-sonnet-4-5-20250929-v1"

# 3. Use Claude Code normally - authentication handled automatically!

2. Multiple Environments with Same Token

bash

# Development
# User Group: Development Team
# Custom Key: sk-dev-token-123

# Production
# User Group: Production Team
# Custom Key: sk-prod-token-456

# Same token format, different user groups = different proxy access

3. Team-Based Access Control

bash

# Team A has access to: OpenAI Proxy, custom-LiteLLM
# Team A uses: sk-team-a-token

# Team B has access to: DeepWiki MCP, Test MCP
# Team B uses: sk-team-b-token

# Same interface, different access rights

Advantages

✅ Simplified Configuration

No extra proxy needed
One token to manage
No header injection
Direct connection

✅ Backward Compatible

Existing uag_ keys still work
No breaking changes
Optional feature
Mix and match key types

✅ Same Security

SHA-256 hashing
Same validation flow
Same access control
Same audit trail

✅ Better UX

Familiar token format (sk-, api-, etc.)
No dual authentication
Works with existing tools
Simpler troubleshooting

Limitations

Cannot Modify Token

Once created, you cannot change the custom token value. You must:

Revoke the old API key
Create a new API key with the new token

Token Must Be Unique

Each token can only be registered once
Attempting to register the same token twice will fail
This prevents token conflicts

Still Hashed

The custom token is still hashed (SHA-256)
Cannot retrieve the original token after creation
Same security model as standard keys

Custom API Keys API Reference

Create API Key with Custom Token

Endpoint: POST /api/v1/api-keys

Request Body:

json

{
  "name": "My Custom Token",
  "user_group_id": 1,
  "description": "Optional description",
  "custom_key": "sk-your-service-token-here",
  "expires_in_days": 90
}

Response:

json

{
  "success": true,
  "data": {
    "api_key": {
      "id": 1,
      "name": "My Custom Token",
      "key_prefix": "sk-your-s",
      "user_group_id": 1,
      "user_group_name": "My Team",
      "description": "Optional description",
      "active": true,
      "expires_at": "2026-01-21T12:00:00Z",
      "is_expired": false,
      "last_used_at": null,
      "request_count": 0,
      "created_at": "2025-10-23T12:00:00Z",
      "updated_at": "2025-10-23T12:00:00Z"
    },
    "key": "sk-your-service-token-here",
    "message": "API key created successfully. Save this key securely - it will not be shown again!"
  }
}

Create Standard API Key (No Custom Token)

Request Body:

json

{
  "name": "My Standard Key",
  "user_group_id": 1,
  "description": "Generated key"
}

Response:

json

{
  "success": true,
  "data": {
    "api_key": { ... },
    "key": "uag_abc123def456...",
    "message": "API key created successfully..."
  }
}

Custom API Keys Testing

1. Create Custom API Key

bash

curl -X POST http://localhost:8080/api/v1/api-keys \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Test Token",
    "user_group_id": 1,
    "custom_key": "sk-test-123456"
  }'

2. Test Authentication

bash

# Using custom token
curl -H "Authorization: Bearer sk-test-123456" \
     http://localhost:8033/v1/models

# Should return 200 OK if user group has proxy access

3. Verify Access Control

bash

# Try accessing a proxy you don't have access to
curl -H "Authorization: Bearer sk-test-123456" \
     http://localhost:8999/some-endpoint

# Should return 403 Forbidden

Custom API Keys Troubleshooting

Issue: 401 Unauthorized with custom token

Causes:

Token hash doesn't match database
API key is revoked
API key has expired
User group is inactive

Solution:

Verify the token is exactly correct (no extra spaces)
Check API key status in UI
Verify user group is active
Try creating a new API key

Issue: Works with curl but not Claude Code

Causes:

Claude Code may be modifying the Authorization header
Base URL not set correctly

Solution:

Verify base URL: http://localhost:8033/ (with trailing slash)
Test with curl first to confirm token works
Check Claude Code logs for actual headers sent

Issue: Token shows as "Unknown" in UI

Cause: Non-standard token format

Solution: This is expected for custom tokens. The UI will show:

Prefix: First 8 characters (e.g., sk-test-)
Masked: sk-test-••••••••

Migration Guide

From Proxy Setup to Direct

Before (with nginx/Python proxy):

bash

# Stop the proxy
pkill -f claude-proxy.py
# or
brew services stop nginx

# Update environment
export ANTHROPIC_BASE_URL=http://localhost:8033/  # Change port

# Create custom API key via UI or API

# Restart Claude Code - it will now work directly!

After:

✅ No proxy process running
✅ Direct connection to gateway
✅ Same authentication experience
✅ Simpler troubleshooting

Custom Keys See Also

API Key Authentication Guide
Claude Code Proxy Setup (now optional!)
User Groups Management - See OAuth User Access Control section
Unified Web API

Custom API Keys (Using Downstream Service Tokens) ​

Custom API Keys Overview ​

Problem This Solves ​

Custom API Keys How It Works ​

Creating a Custom API Key ​

Custom Keys Via Web UI ​

Custom Keys Via API ​

Claude Code Configuration ​

Before (With Proxy) ​

After (Direct) ​

How Authentication Works ​

Header Extraction Priority ​

Standard Gateway Key (uag_) ​

Custom Service Token (sk-) - NEW! ​

Custom API Keys Security ​

Custom Key Token Storage ​

Token Validation ​

Token Display ​

Custom API Keys Use Cases ​

1. Claude Code with LiteLLM ​

2. Multiple Environments with Same Token ​

3. Team-Based Access Control ​

Advantages ​

✅ Simplified Configuration ​

✅ Backward Compatible ​

✅ Same Security ​

✅ Better UX ​

Limitations ​

Cannot Modify Token ​

Token Must Be Unique ​

Still Hashed ​

Custom API Keys API Reference ​

Create API Key with Custom Token ​

Create Standard API Key (No Custom Token) ​

Custom API Keys Testing ​

1. Create Custom API Key ​

2. Test Authentication ​

3. Verify Access Control ​

Custom API Keys Troubleshooting ​

Issue: 401 Unauthorized with custom token ​

Issue: Works with curl but not Claude Code ​

Issue: Token shows as "Unknown" in UI ​

Migration Guide ​

From Proxy Setup to Direct ​

Custom Keys See Also ​

Custom API Keys (Using Downstream Service Tokens)

Custom API Keys Overview

Problem This Solves

Custom API Keys How It Works

Creating a Custom API Key

Custom Keys Via Web UI

Custom Keys Via API

Claude Code Configuration

Before (With Proxy)

After (Direct)

How Authentication Works

Header Extraction Priority

Standard Gateway Key (uag_)

Custom Service Token (sk-) - NEW!

Custom API Keys Security

Custom Key Token Storage

Token Validation

Token Display

Custom API Keys Use Cases

1. Claude Code with LiteLLM

2. Multiple Environments with Same Token

3. Team-Based Access Control

Advantages

✅ Simplified Configuration

✅ Backward Compatible

✅ Same Security

✅ Better UX

Limitations

Cannot Modify Token

Token Must Be Unique

Still Hashed

Custom API Keys API Reference

Create API Key with Custom Token

Create Standard API Key (No Custom Token)

Custom API Keys Testing

1. Create Custom API Key

2. Test Authentication

3. Verify Access Control

Custom API Keys Troubleshooting

Issue: 401 Unauthorized with custom token

Issue: Works with curl but not Claude Code

Issue: Token shows as "Unknown" in UI

Migration Guide

From Proxy Setup to Direct

Custom Keys See Also
