Setting Up OAuth Authentication for MCP Clients

✅ Automatic OAuth with Dynamic Client Registration
MCP clients (Cursor, Claude Desktop, etc.) automatically discover OAuth requirements and register themselves via Dynamic Client Registration (DCR). No manual configuration needed!

This guide explains how MCP clients automatically authenticate with OAuth-enabled MCP proxies through the AI Security Gateway.

You can apply this same process to most MCP clients that support RFC 8414!

Supported MCP Clients Overview

Client	RFC 8414 Support	DCR Support	Status
Cursor IDE	✅ Yes	✅ Yes	Fully Supported
Claude Desktop	✅ Yes	✅ Yes	Fully Supported
VS Code + Copilot	✅ Yes	✅ Yes	Fully Supported
Custom MCP Clients	✅ Yes	✅ Yes	RFC-compliant

The AI Security Gateway's OAuth Proxy feature supports two modes:

• Upstream Mode: Gateway forwards client tokens directly to upstream OAuth providers
• Gateway Mode: Gateway acts as OAuth server and manages tokens for clients

Both modes support Dynamic Client Registration (RFC 7591), enabling Cursor to automatically:

1. Discover OAuth requirements
2. Register itself as an OAuth client
3. Complete the OAuth flow
4. Authenticate all requests

Quick Start (Automatic Setup)

Cursor IDE Prerequisites

• ✅ MCP proxy configured with OAuth Proxy enabled
• ✅ Gateway running and accessible
• ✅ Cursor IDE with MCP support

Setup Steps

1. Configure Cursor MCP: Update your ~/.cursor/mcp.json file:

   {
     "mcpServers": {
       "my-server": {
         "url": "http://localhost:9050/mcp"
       }
     }
   }

2. Restart Cursor: After updating mcp.json, restart Cursor. (Not always a requirement)

3. Authenticate Automatically:

   • Cursor automatically detects OAuth is required (via /.well-known/oauth-protected-resource)
   • Cursor registers itself via Dynamic Client Registration (/api/v1/oauth-proxy/{id}/register)

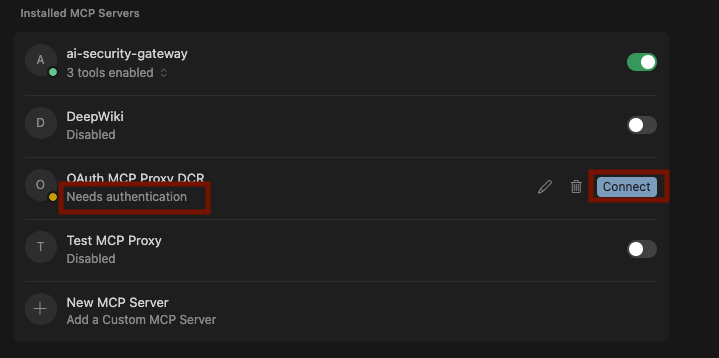

   • Cursor displays "Connect" button in the UI (Needs Authentication)
   • Click "Connect" to complete OAuth flow in browser
   • Click "Needs authentication" is the connect button does not work

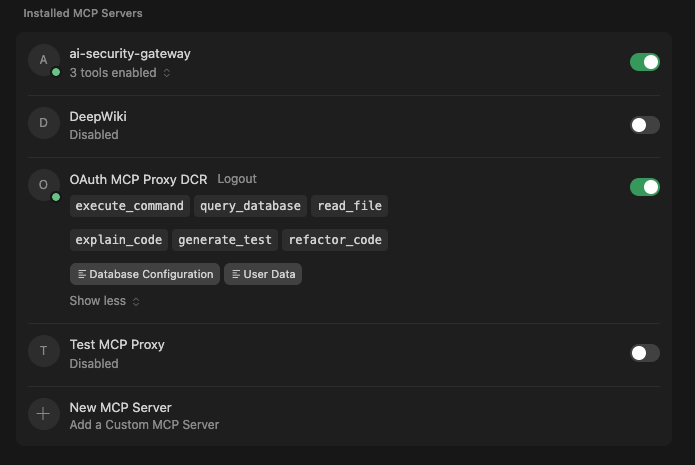

   • Cursor automatically receives and stores authentication token

That's it! No manual token configuration needed.

Cursor IDE How It Works

Discovery Phase

1. OAuth Detection: Cursor queries /.well-known/oauth-protected-resource on the proxy
2. Metadata Retrieval: Cursor queries /.well-known/oauth-authorization-server for OAuth endpoints
3. Client Registration: Cursor POSTs to /api/v1/oauth-proxy/{id}/register (DCR)
   • Gateway generates client_id and client_secret
   • Cursor stores credentials locally

Authorization Phase

4. PKCE Generation: Cursor generates PKCE code verifier and challenge
5. Authorization Request: Cursor opens browser to /api/v1/oauth-proxy/{id}/authorize
6. User Authentication: User completes OAuth flow with upstream provider
7. Token Exchange: Cursor exchanges authorization code for access token
8. Authenticated Access: Cursor uses token for all MCP requests

Mode-Specific Behavior

Upstream Mode:

• Cursor receives tokens directly from upstream provider (via Gateway proxy)
• Tokens are provider-issued (e.g., Google access tokens)
• Gateway forwards requests without modifying tokens

Gateway Mode:

• Cursor receives JWT access tokens issued by Gateway
• Gateway stores upstream provider tokens securely
• Gateway automatically injects upstream tokens when proxying to MCP server

For technical details, see OAuth Proxy Architecture.

Manual Configuration (Fallback)

If automatic discovery doesn't work, you can manually configure OAuth.

Option 1: Use API Key

For machine access or automation:

{
  "mcpServers": {
    "my-server": {
      "url": "http://localhost:9050/mcp",
      "headers": {
        "X-API-Key": "YOUR_API_KEY"
      }
    }
  }
}

API keys can be created in the Gateway Admin UI under API Keys section.

Cursor Configuration Examples

Example 1: Development with Upstream Mode

{
  "mcpServers": {
    "dev-server": {
      "url": "http://localhost:9050/mcp",
      "transport": "sse"
    }
  }
}

Proxy Configuration:

• oauth_proxy_enabled: true
• oauth_proxy_mode: "upstream"
• oauth_proxy_provider_id: 1 (e.g., Google OAuth)

Behavior:

• Cursor auto-discovers OAuth requirements
• Cursor registers via DCR
• Cursor receives tokens from Google (via Gateway)
• Fast, direct token exchange

Example 2: Production with Gateway Mode

{
  "mcpServers": {
    "prod-server": {
      "url": "https://gateway.example.com/mcp",
      "transport": "sse"
    }
  }
}

Proxy Configuration:

• oauth_proxy_enabled: true
• oauth_proxy_mode: "gateway"
• oauth_proxy_provider_id: 2 (e.g., Azure AD)
• oauth_proxy_require_consent: true

Behavior:

• Cursor auto-discovers OAuth requirements
• Cursor registers via DCR
• User approves consent screen
• Cursor receives JWT from Gateway
• Gateway manages Azure AD tokens automatically

Cursor IDE Troubleshooting

Automatic Discovery Not Working

If Cursor doesn't show the "Connect" button:

1. Verify Well-Known Endpoints:

   # Should return OAuth metadata
   curl http://localhost:9050/.well-known/oauth-protected-resource | jq .

   # Should include authorization_endpoint, token_endpoint, registration_endpoint
   curl http://localhost:9050/.well-known/oauth-authorization-server | jq .

2. Verify OAuth Proxy Configuration:

   • Check proxy has oauth_proxy_enabled: true
   • Check oauth_proxy_provider_id is set to valid provider
   • Check oauth_proxy_mode is set to "upstream" or "gateway"
   • Restart proxy after configuration changes

3. Check Gateway Logs:

   tail -f logs/unified-admin.log | grep "oauth-proxy"

   Look for DCR registration requests and authorization attempts.

4. Test DCR Manually:

   curl -X POST http://localhost:8080/api/v1/oauth-proxy/9/register \
     -H "Content-Type: application/json" \
     -d '{
       "redirect_uris": ["http://localhost:8888/callback"],
       "client_name": "Test Client"
     }'

   Should return client_id and client_secret.

Loading Tools Hangs Forever

If Cursor shows "Loading tools" indefinitely:

1. Check Token Validity:

   • In Gateway mode: Verify JWT token is not expired
   • In Upstream mode: Verify provider token is not expired

2. Check Hybrid Authentication:

   • Gateway should bypass its own auth when OAuth Proxy is enabled
   • Check logs for "HybridProxyAuth: Using OAuth Proxy token validator"

3. Verify Proxy is Running:

   curl http://localhost:9050/health

401 Unauthorized Errors

Symptom: Requests return 401 even with valid token.

Solutions:

1. Check Token Format:

   • Should be: Authorization: Bearer <token>
   • No extra spaces or newlines

2. Verify Token Type:

   • Gateway mode: Use JWT token from /api/v1/oauth-proxy/{id}/token
   • Upstream mode: Use provider-issued token
   • Session tokens: Use tokens from Gateway session

3. Check Token Validator:

   # Check Gateway logs for token validation
   grep "OAuth Proxy token validation" logs/unified-admin.log

OAuth Flow Fails

Symptom: Browser redirect fails or shows error page.

Solutions:

1. Check Redirect URIs:

   • Cursor's redirect URI must match registered URI patterns
   • Common patterns: cursor://*/oauth/*/callback
   • Check proxy config: oauth_proxy_allowed_redirect_uris

2. Check PKCE Validation:

   • In Gateway mode, both PKCE flows must succeed
   • Check logs for "Invalid code verifier" errors
   • Ensure client sends correct code_verifier in token request

3. Check Provider Configuration:

   • Verify OAuth provider credentials are correct
   • Verify provider's redirect URI includes Gateway callback
   • Example: http://localhost:8080/api/v1/oauth/callback

Connection Refused

Symptom: Cannot connect to proxy or Gateway.

Solutions:

1. Verify Services are Running:

   # Check Gateway
   curl http://localhost:8080/api/v1/health

   # Check Proxy
   curl http://localhost:9050/health

2. Check Port Configuration:

   • Gateway default: 8080
   • Proxy default: 9050 (or configured port)
   • Verify firewall allows connections

3. Check Network Settings:

   • For remote Gateway: Ensure it's accessible from client machine
   • For localhost: Verify 127.0.0.1 vs localhost resolution

Tokens Expire Too Quickly

Gateway Mode:

• JWT tokens expire based on upstream provider's token lifetime
• Default: 1 hour (3600 seconds)
• Gateway automatically refreshes if refresh token available

Upstream Mode:

• Client receives provider tokens directly
• Client responsible for token refresh

Cursor IDE Advanced Configuration

Custom Redirect URI Patterns

Configure allowed redirect URI patterns in proxy settings:

{
  "oauth_proxy_allowed_redirect_uris": [
    "cursor://*/oauth/*/callback",
    "http://localhost:*/callback",
    "vscode://*/oauth/callback"
  ]
}

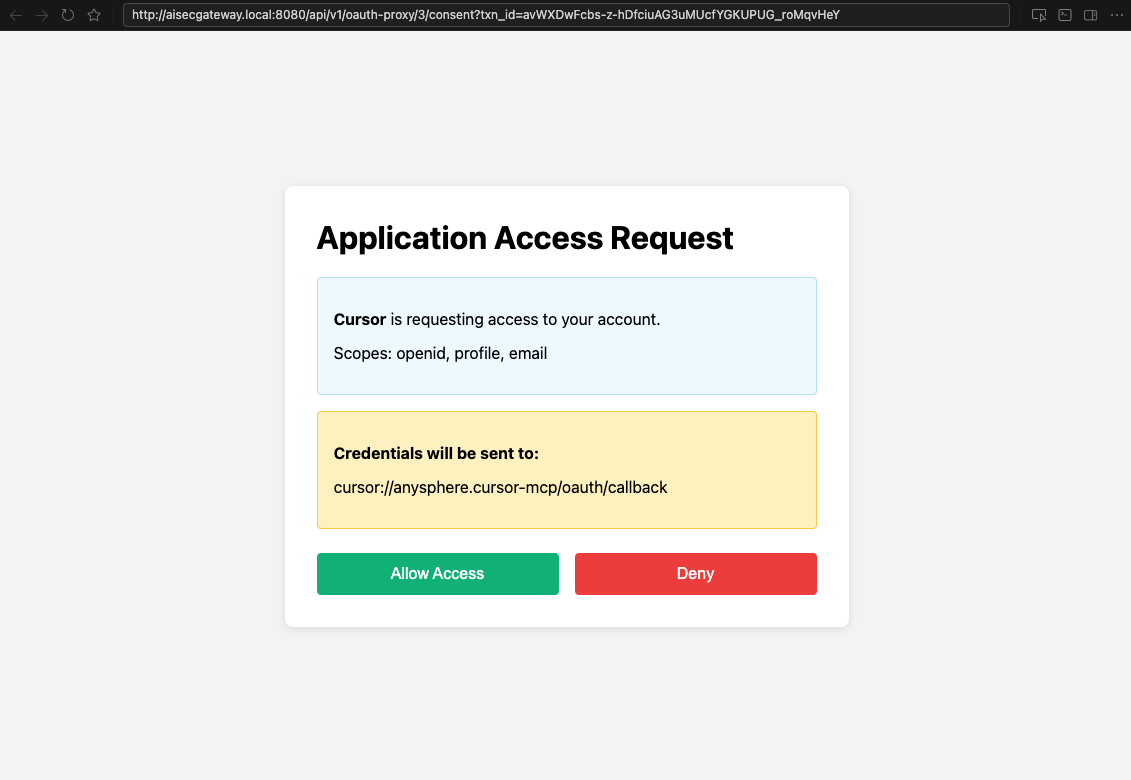

Consent Screen Customization

Enable/disable consent screen per proxy:

{
  "oauth_proxy_require_consent": true
}

When enabled, users must approve each OAuth flow, providing:

• Requested scopes visibility
• Client application details
• Option to deny access

Cursor IDE Rate Limiting

DCR and token endpoints are rate-limited by default:

• 60 requests per minute per IP address
• Returns 429 Too Many Requests when exceeded
• Retry-After header indicates wait time

---

Claude Desktop Configuration

Claude Desktop follows the same OAuth discovery and DCR process as Cursor.

Claude Desktop Configuration File

macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
Windows: %APPDATA%\Claude\claude_desktop_config.json

Example 1: Basic OAuth Configuration

{
  "mcpServers": {
    "secure-mcp": {
      "url": "http://localhost:9050/mcp"
    }
  }
}

After saving the config, restart Claude Desktop. It will:

1. Auto-discover OAuth requirements via /.well-known/oauth-protected-resource
2. Register via DCR at /api/v1/oauth-proxy/{id}/register
3. Display "Connect" or "Authenticate" prompt
4. Complete OAuth flow in browser

Example 2: Production Configuration

{
  "mcpServers": {
    "production-mcp": {
      "url": "https://mcp.company.com:9050/mcp",
      "transport": "sse"
    }
  }
}

Example 3: Using API Key (Non-OAuth)

For machine access where interactive OAuth isn't suitable:

{
  "mcpServers": {
    "machine-access": {
      "url": "http://localhost:9050/mcp",
      "headers": {
        "X-API-Key": "uag_your_api_key_here"
      }
    }
  }
}

---

Connecting to Built-in Gateway MCP Servers

The AI Security Gateway includes built-in MCP servers that are separate from the OAuth-protected proxy endpoints described above. These built-in servers provide direct access to gateway management and security features:

• MCP Discovery Server (/api/v1/mcp) — List and manage MCP proxies via MCP protocol
• Skill Security Server (/api/v1/mcp/skill-security) — Analyze skills for security risks, check approval status, and report suspicious activity

These endpoints use the MCP Streamable HTTP transport (GET/POST/DELETE) and do not require OAuth authentication.

Cursor / Claude Desktop / Claude Code

Cursor, Claude Desktop, and Claude Code support the url transport natively:

{
  "mcpServers": {
    "ai-security-gateway": {
      "url": "http://localhost:8080/api/v1/mcp"
    },
    "skill-security": {
      "url": "http://localhost:8080/api/v1/mcp/skill-security"
    }
  }
}

Agent Zero and Other Python-based MCP Clients

Some MCP clients (such as Agent Zero) require the type field to be explicitly set to streamable-http. Without this, the client may not know which transport to use and fail to connect.

If the gateway is running on the host machine and the MCP client is running inside Docker, use host.docker.internal instead of localhost:

{
  "mcpServers": {
    "ai-security-gateway": {
      "description": "Use this MCP to list AI Security Gateway proxies",
      "url": "http://host.docker.internal:8080/api/v1/mcp",
      "type": "streamable-http"
    },
    "skill-security": {
      "description": "Use this MCP to use the Security Skills hub",
      "url": "http://host.docker.internal:8080/api/v1/mcp/skill-security",
      "type": "streamable-http"
    }
  }
}

Verifying Connectivity

You can verify the MCP endpoints are reachable before configuring your client:

# Health check (GET)
curl http://localhost:8080/api/v1/health

# Test MCP Discovery endpoint (POST)
curl -X POST http://localhost:8080/api/v1/mcp \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","method":"initialize","id":1}'

# Test Skill Security endpoint (POST)
curl -X POST http://localhost:8080/api/v1/mcp/skill-security \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","method":"initialize","id":1}'

# From inside Docker containers, replace localhost with host.docker.internal
curl -X POST http://host.docker.internal:8080/api/v1/mcp/skill-security \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","method":"initialize","id":1}'

Both endpoints should return a JSON-RPC response with protocolVersion and serverInfo.

Troubleshooting Built-in MCP Servers

Issue	Cause	Fix
404 Not Found	Wrong URL path or GET-only client	Verify the exact URL path and ensure client uses Streamable HTTP transport
Connection refused	Gateway not running	Start the gateway: ./build/unified-admin
Connection refused (Docker)	Wrong hostname	Use host.docker.internal instead of localhost from Docker containers
ValueError: Command not specified	Client using stdio transport	Switch to url or streamable-http transport type
Client connects but no tools	Wrong endpoint	/api/v1/mcp is for proxy discovery; /api/v1/mcp/skill-security is for skill analysis tools

---

Support

For issues or questions:

1. Check Gateway logs: tail -f logs/unified-admin.log
2. Enable debug logging: Set LOG_LEVEL=debug environment variable
3. Test endpoints manually using curl examples above
4. Review related documentation for detailed troubleshooting

---

Summary

✅ Automatic OAuth with DCR - No manual configuration needed
✅ Dual Mode Support - Choose Upstream or Gateway mode
✅ PKCE Security - RFC 7636 compliant
✅ Multi-Provider - Google, GitHub, Azure AD, Okta, etc.
✅ Hybrid Authentication - OAuth tokens AND API keys work together
✅ Multi-Client Support - Cursor, Claude Desktop, VS Code, custom clients

The OAuth Proxy with Dynamic Client Registration provides zero-configuration OAuth authentication for MCP clients, with flexible deployment options for both development and production environments.
