Comprehensive Audit Logging

The AI Security Gateway includes enterprise-grade audit logging that tracks all security-sensitive operations for compliance, security monitoring, and incident response.

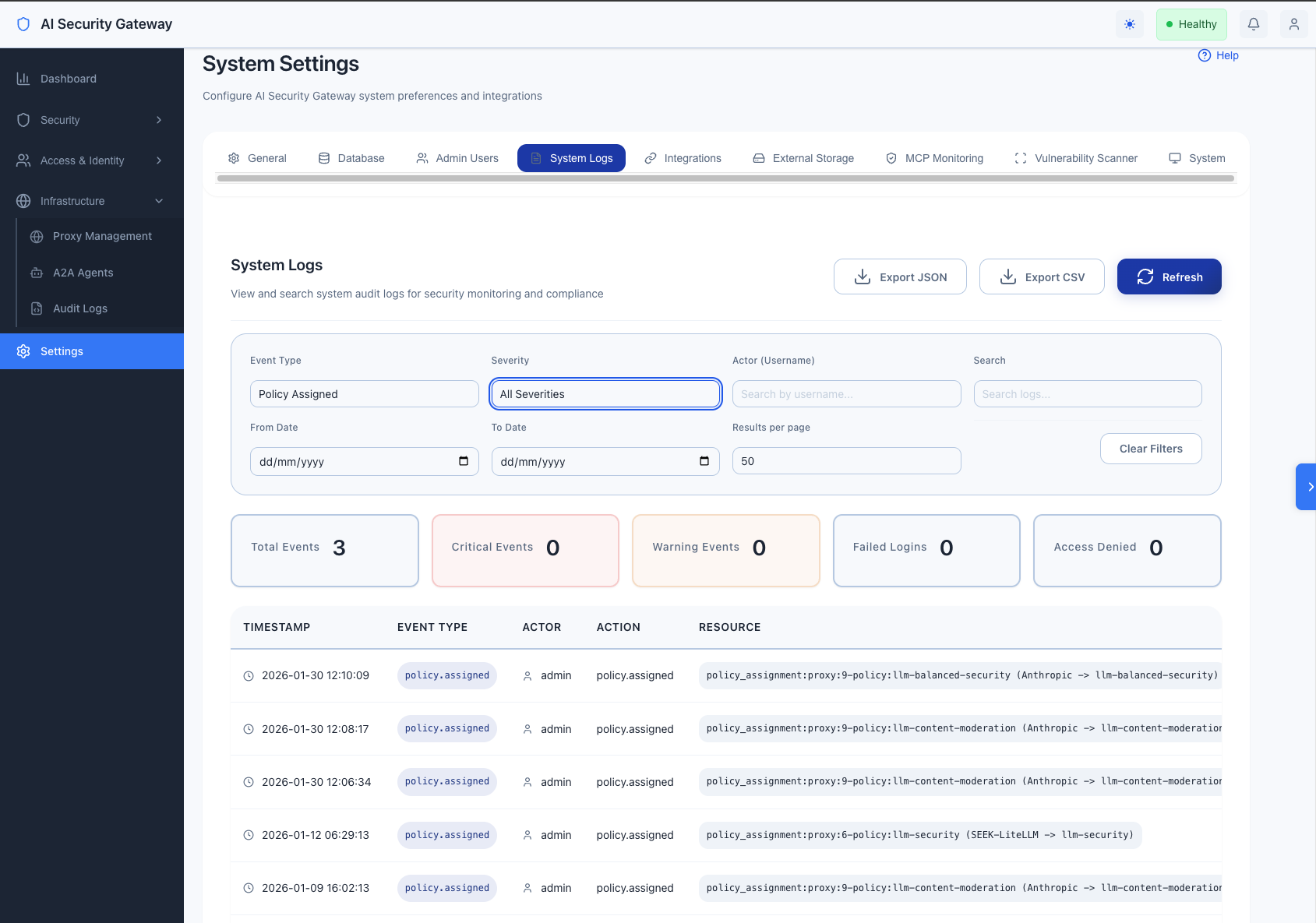

Audit Log Viewer

Audit Logging Overview

The audit logging system provides:

35+ event types covering authentication, user management, resource operations, and security events
Structured JSON output for integration with SIEM/SOAR systems
Complete attribution with user ID, username, email, role, IP address, and user agent
Severity levels (info, warning, critical) for prioritization
Compliance ready for SOC 2, HIPAA, GDPR, and PCI DSS requirements

How Audit Logging Works

Core Capabilities

Automatic Tracking - All security-sensitive operations are automatically logged
Dual Output - Logs available in both human-readable and JSON formats
Structured Data - Every event includes timestamp, user details, action, result, and context
Integration Ready - JSON format designed for SIEM/SOAR system integration

What Gets Logged

Every audit event captures:

Who: User ID, username, email, role
What: Action performed and resource affected
When: Precise timestamp (UTC)
Where: Source IP address and user agent
Result: Success, failure, or partial completion
Why: Context and additional details
Severity: Info, warning, or critical priority

Event Types

Authentication Events (6 types)

Event Type	Description	Severity
`auth.login`	Successful user login	info
`auth.login.failed`	Failed login attempt	warning
`auth.logout`	User logout	info
`auth.token.refresh`	JWT token refresh	info
`auth.password.change`	User password change	info
`auth.password.reset`	Admin password reset	warning

Example:

2025-10-28 14:23:45 INFO [audit] [AUDIT] [auth.login] admin (ID:1) auth.login - authentication:admin - Result: success | User logged in successfully with role: admin | IP: 192.168.1.100

User Management Events (6 types)

Event Type	Description	Severity
`user.created`	New user account created	info
`user.updated`	User profile modified	info
`user.deleted`	User account deleted	warning
`user.deactivated`	User account deactivated	warning
`user.activated`	User account reactivated	info
`user.role.changed`	User role modified	warning

Example:

2025-10-28 14:25:30 INFO [audit] [AUDIT] [user.created] admin (ID:1) create user - user:42 (john.doe) - Result: success | Created user 'john.doe' with role 'user' | IP: 192.168.1.100

API Key Events (5 types)

Event Type	Description	Severity
`apikey.created`	API key generated	info
`apikey.updated`	API key modified	info
`apikey.deleted`	API key deleted	warning
`apikey.revoked`	API key revoked	warning
`apikey.used`	API key authenticated	info

User Group Events (5 types)

Event Type	Description	Severity
`usergroup.created`	User group created	info
`usergroup.updated`	User group modified	info
`usergroup.deleted`	User group deleted	warning
`usergroup.access.added`	Member added to group	info
`usergroup.access.removed`	Member removed from group	info

Proxy Lifecycle Events (6 types)

Event Type	Description	Severity
`proxy.created`	Proxy configuration created	info
`proxy.updated`	Proxy settings modified	info
`proxy.deleted`	Proxy configuration removed	warning
`proxy.started`	Proxy instance started	info
`proxy.stopped`	Proxy instance stopped	info
`proxy.restarted`	Proxy instance restarted	info

Policy Assignment Events (4 types)

Event Type	Description	Severity
`policy.assigned`	Security policy assigned to proxy	info
`policy.unassigned`	Security policy removed from proxy	info
`policy.bulk.assigned`	Multiple policies assigned	info
`policy.assignment.updated`	Policy assignment modified	info

MCP Tool Events (4 types)

Event Type	Description	Severity
`mcp.tool.enabled`	MCP tool enabled	info
`mcp.tool.disabled`	MCP tool disabled	info
`mcp.tool.bulk.updated`	Multiple tools updated	info
`mcp.tool.discovered`	Tools discovered from MCP server	info

OAuth Provider Events (4 types)

Event Type	Description	Severity
`oauth.provider.created`	OAuth provider configured	info
`oauth.provider.updated`	OAuth provider modified	info
`oauth.provider.deleted`	OAuth provider removed	warning
`oauth.session.revoked`	OAuth session revoked	warning

Security Events (4 types)

Event Type	Description	Severity
`security.access.denied`	Unauthorized access attempt	critical
`security.input.invalid`	Invalid input detected	warning
`security.ratelimit.exceeded`	Rate limit violation	warning
`security.suspicious.activity`	Suspicious behavior detected	critical

Log Format

Human-Readable Format

[TIMESTAMP] [LEVEL] [COMPONENT] [AUDIT] [EVENT_TYPE] ACTOR ACTION - RESOURCE - Result: RESULT | DETAILS | IP: SOURCE_IP

Example:

2025-10-28 14:23:45 INFO [AI Security Gateway] [audit] [AUDIT] [auth.login] admin (ID:1) auth.login - authentication:admin - Result: success | User logged in successfully with role: admin | IP: 192.168.1.100

JSON Format (SIEM Integration)

json

{
  "event_type": "auth.login",
  "timestamp": "2025-10-28T14:23:45Z",
  "severity": "info",
  "actor": {
    "user_id": 1,
    "username": "admin",
    "email": "admin@localhost",
    "role": "admin",
    "type": "user"
  },
  "resource": {
    "type": "authentication",
    "id": "admin",
    "name": ""
  },
  "action": "auth.login",
  "result": "success",
  "details": "User logged in successfully with role: admin",
  "metadata": {},
  "source_ip": "192.168.1.100",
  "user_agent": "Mozilla/5.0...",
  "error_message": ""
}

Audit Logging Usage Examples

Querying Audit Logs

bash

grep "auth.login.failed" logs/ai-security-gateway.log

Track actions by specific user

bash

grep "admin (ID:1)" logs/ai-security-gateway.log | grep AUDIT

Find critical security events

bash

grep "CRITICAL" logs/ai-security-gateway.log | grep AUDIT

List all password changes

bash

grep "auth.password.change" logs/ai-security-gateway.log

Find proxy lifecycle events

bash

grep -E "(proxy.started|proxy.stopped|proxy.restarted)" logs/ai-security-gateway.log

Export audit logs to JSON

bash

grep "AUDIT_JSON" logs/ai-security-gateway.log | jq '.'

Monitoring Patterns

bash

# Alert on 5+ failed logins from same IP
grep "auth.login.failed" logs/ai-security-gateway.log | \
  awk '{print $NF}' | sort | uniq -c | awk '$1 >= 5'

Privilege Escalation Detection

bash

# Monitor role changes
grep "user.role.changed" logs/ai-security-gateway.log

After-Hours Activity

bash

# Find activity outside business hours (assuming UTC)
grep "AUDIT" logs/ai-security-gateway.log | \
  awk '{if ($2 < "08:00:00" || $2 > "18:00:00") print}'

Audit Logging Integration

SIEM Integration

Audit logs are designed for easy integration with Security Information and Event Management (SIEM) systems:

Supported Integration Methods:

Splunk - HTTP Event Collector (HEC)
Elastic Stack - Filebeat/Logstash pipeline
AWS CloudWatch - Log streaming
Azure Monitor - Log Analytics workspace
QRadar - Syslog/REST API

Setup: Configure external log storage in Settings → Integrations section of the web UI.

Webhook Notifications

Configure real-time webhooks for critical security events:

Navigate to Settings → Integrations → Webhooks
Add webhook URL (Slack, Teams, custom endpoint)
Select event types to trigger notifications:
- Failed login attempts
- Access denied events
- Privilege escalation
- Configuration changes
Choose severity levels (info, warning, critical)

Audit Log Aggregation

For centralized log management, audit logs can be forwarded to:

Elastic Stack (ELK)

Use Filebeat to collect and forward logs
Filter by log_type: audit for audit-specific events
Configure multiline patterns for structured parsing

Splunk

Create a dedicated audit log index
Use sourcetype for audit events
Set up dashboards for compliance reporting

Configuration: Set up log forwarding in Settings → Integrations in the web UI.

Compliance Use Cases

SOC 2 Type II

✅ Administrative access logging (auth.login, auth.logout)
✅ Configuration change tracking (proxy., policy., user.*)
✅ Access control logging (security.access.denied)
✅ Audit log integrity (structured format, timestamps)

Audit System HIPAA

✅ User access logging (auth.*)
✅ PHI access tracking (via proxy audit logs)
✅ Administrative actions (user., policy.)
✅ Security incident logging (security.*)

✅ Data access logging (user., apikey.)
✅ Data modification tracking (user.updated, user.deleted)
✅ Consent management (oauth.*)
✅ Right to be forgotten (user.deleted audit trail)

Audit System PCI DSS

✅ User identification and authentication (auth.*)
✅ Access control measures (security.access.denied)
✅ Audit trail for all access to cardholder data
✅ Security policy enforcement (policy.*)

Audit Logging Implementation Best Practices

1. Log Retention

The AI Security Gateway supports granular retention policies for different data types, allowing you to configure retention periods independently for alerts, audit logs, request logs, token usage, and more.

Configuring Retention Policies

Configure retention via the web UI:

Navigate to Settings → Database → Advanced Retention Settings
Set retention periods for each data type:
- Security Alerts: 180 days (recommended)
- Audit Logs: 90 days (compliance standard)
- Request Logs: 30 days (privacy-focused)
- Token Usage: 365 days (annual cost tracking)
- Health Metrics: 30 days (operational monitoring)
- MCP Tool Logs: 90 days (same as audit logs)
- LLM Request Logs: 90 days (same as audit logs)
- A2A Invocation Logs: 90 days (same as audit logs)
Click Save to apply changes

Recommended Retention Periods

Security Alerts: 90-180 days (compliance/forensics)
Audit Logs: 90 days (compliance requirements)
Request Logs: 30 days (privacy - shorter retention)
Token Usage: 365 days (annual cost analysis)
Health Metrics: 30 days (operational monitoring)
MCP/LLM/A2A Logs: 90 days (same as audit logs)

Automatic Cleanup

Cleanup runs daily at midnight
Old records are automatically deleted based on retention policy
Token usage records are now automatically cleaned up (previously missing)
Changes to retention settings take effect on the next cleanup cycle

2. Log Analysis

bash

# Daily security review
./scripts/audit-report.sh --date $(date +%Y-%m-%d) --critical

3. Alert Configuration

Set up alerts for critical events (security.access.denied)
Monitor failed login patterns (auth.login.failed)
Track privilege escalation (user.role.changed)

4. Regular Audits

Weekly: Review critical events
Monthly: Analyze user activity patterns
Quarterly: Compliance audit reports

5. Incident Response

Filter logs by time range and user
Export audit trail to JSON
Analyze event sequence
Generate incident report

Audit Logging Performance Considerations

Minimal Overhead: Async logging prevents blocking
Structured Format: Efficient parsing for analysis
Log Levels: Filter by severity in production
Retention: Implement log rotation and archival

Audit Logging Implementation Troubleshooting

Missing Audit Logs

bash

# Check log file permissions
ls -la logs/ai-security-gateway.log

# Verify audit service is initialized
grep "Audit service created" logs/ai-security-gateway.log

High Log Volume

bash

# Check log size
du -h logs/ai-security-gateway.log

# Filter by severity
grep "CRITICAL\|WARN" logs/ai-security-gateway.log

Parsing Errors

bash

# Validate JSON format
grep "AUDIT_JSON" logs/ai-security-gateway.log | jq empty

Audit Logging Future Enhancements

Database Audit Trail - Store audit events in database for querying
Real-time Dashboards - Vue.js audit log viewer
Advanced Alerting - Machine learning for anomaly detection
Compliance Reports - Automated report generation
External Integrations - Direct SIEM/SOAR connectors

Settings Configuration: See System Settings Guide
SIEM Integration: See Integration Setup Guide
Compliance: See Compliance Overview
External Reference: OWASP Logging Cheat Sheet

Comprehensive Audit Logging ​

Audit Logging Overview ​

How Audit Logging Works ​

Core Capabilities ​

What Gets Logged ​

Event Types ​

Authentication Events (6 types) ​

User Management Events (6 types) ​

API Key Events (5 types) ​

User Group Events (5 types) ​

Proxy Lifecycle Events (6 types) ​

Policy Assignment Events (4 types) ​

MCP Tool Events (4 types) ​

OAuth Provider Events (4 types) ​

Security Events (4 types) ​

Log Format ​

Human-Readable Format ​

JSON Format (SIEM Integration) ​

Audit Logging Usage Examples ​

Querying Audit Logs ​

Find all failed login attempts ​

Track actions by specific user ​

Find critical security events ​

List all password changes ​

Find proxy lifecycle events ​

Export audit logs to JSON ​

Monitoring Patterns ​

Failed Login Detection ​

Privilege Escalation Detection ​

After-Hours Activity ​

Audit Logging Integration ​

SIEM Integration ​

Webhook Notifications ​

Audit Log Aggregation ​

Compliance Use Cases ​

SOC 2 Type II ​

Audit System HIPAA ​

Audit System GDPR ​

Audit System PCI DSS ​

Audit Logging Implementation Best Practices ​

1. Log Retention ​

Configuring Retention Policies ​

Recommended Retention Periods ​

Automatic Cleanup ​

2. Log Analysis ​

3. Alert Configuration ​

4. Regular Audits ​

5. Incident Response ​

Audit Logging Performance Considerations ​

Audit Logging Implementation Troubleshooting ​

Missing Audit Logs ​

High Log Volume ​

Parsing Errors ​

Audit Logging Future Enhancements ​

Related Documentation ​

Comprehensive Audit Logging

Audit Logging Overview

How Audit Logging Works

Core Capabilities

What Gets Logged

Event Types

Authentication Events (6 types)

User Management Events (6 types)

API Key Events (5 types)

User Group Events (5 types)

Proxy Lifecycle Events (6 types)

Policy Assignment Events (4 types)

MCP Tool Events (4 types)

OAuth Provider Events (4 types)

Security Events (4 types)

Log Format

Human-Readable Format

JSON Format (SIEM Integration)

Audit Logging Usage Examples

Querying Audit Logs

Find all failed login attempts

Track actions by specific user

Find critical security events

List all password changes

Find proxy lifecycle events

Export audit logs to JSON

Monitoring Patterns

Failed Login Detection

Privilege Escalation Detection

After-Hours Activity

Audit Logging Integration

SIEM Integration

Webhook Notifications

Audit Log Aggregation

Compliance Use Cases

SOC 2 Type II

Audit System HIPAA

Audit System GDPR

Audit System PCI DSS

Audit Logging Implementation Best Practices

1. Log Retention

Configuring Retention Policies

Recommended Retention Periods

Automatic Cleanup

2. Log Analysis

3. Alert Configuration

4. Regular Audits

5. Incident Response

Audit Logging Performance Considerations

Audit Logging Implementation Troubleshooting

Missing Audit Logs

High Log Volume

Parsing Errors

Audit Logging Future Enhancements

Related Documentation
